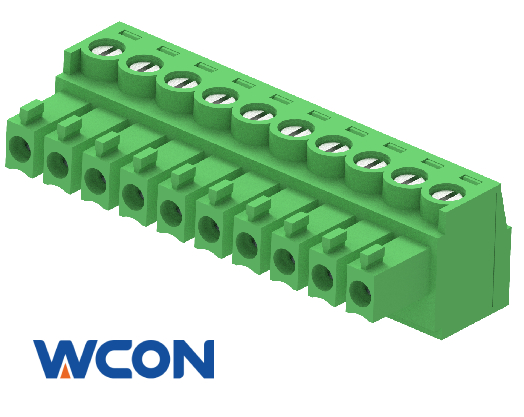

PF381-CXXASMN1(N)

3.81mm Pitch Female,Single Row,Pluggable Terminal Blocks,Vertical incoming,Without Two Side Screw
Inquiry Now Register
/assets/upload/2023-12-23/PF381-C10ASMN1.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 300 V/AC Operation Temperature -40°C - +105°C
Rated Current 8 AMP Contact Material Copper Alloy
Contact Resistance 20 mΩ Max Insulator Material Thermoplastic Plastics
Insulation Resistance 1000 MΩ Min Contact Plating Sn
Withstand Voltage 2500 V/AC,V/DC Packaging PE Bag

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • 3.81mm Pitch Male,Single Row,Pluggable Terminal Blocks,R/A DIP,Without Two Side Screw
    PM381-1RXXASM1(N)
  • 3.81mm Pitch Male,Single Row,Pluggable Terminal Blocks,R/A DIP,With Two Side Screw
    PM381-1RXXASM2(N)
  • 3.81mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP,Without Two Side Screw
    PM381-1SXXASM1(N)
  • 3.81mm Pitch Male,Single Row,Pluggable Terminal Blocks,Vertical DIP,With Two Side Screw
    PM381-1SXXASM2(N)
  • 3.81mm Pitch Male,Pluggable Terminal Blocks,R/A DIP,Without Two Side Screw
    PM381-3RXXASM1N
  • 3.81mm Pitch Male,Pluggable Terminal Blocks,R/A DIP,With Two Side Screw
    PM381-3RXXASM2N
  • 3.81mm Pitch Male,Pluggable Terminal Blocks,Vertical DIP,Without Two Side Screw
    PM381-3SXXASM1N
  • 3.81mm Pitch Male,Pluggable Terminal Blocks,Vertical DIP,With Two Side Screw
    PM381-3SXXASM2N
