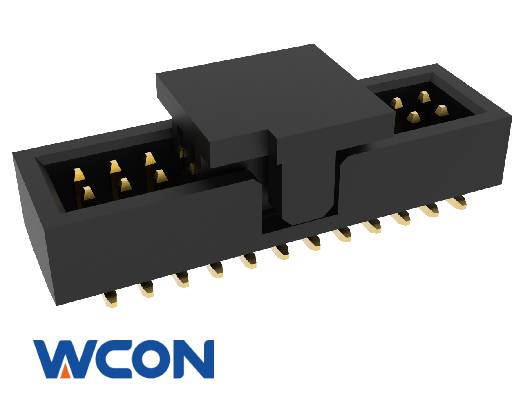

3136A-XXMXXBK00XX
1.27mm Pitch Box Header Connector,Male,3.30mm Height,Vertical,Surface Mount,With Post,Gold or Tin over Ni,Black
Quick Inquiry
2D Drawing(PDF)
Packaging Specification
| Rated Voltage | 100 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 1 AMP | Contact Material | Brass | |
| Contact Resistance | 20 mΩ Max | Insulator Material | PA9T or LCP | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 500 V/AC | Packaging | Tube,Reel | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
1.27mm Pitch Female Header Connector,2.10mm Height,Gold or Tin over Ni,Black
