3521-701XXZXX124X1

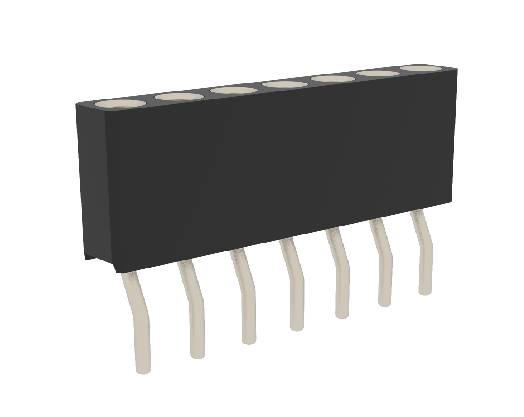

Machined Female Header Connector,Horizontal,Surface Mount,Single Row,7.00mm Height,12.1mm Terminal length,Gold or Tin over nickel,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 250 V/AC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 3 AMP | Contact Material | Brass | |
| Contact Resistance | 10 mΩ Max | Insulator Material | PPS | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Au&Sn | |
| Withstand Voltage | 1000 V/AC | Packaging | Tube,Tray | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
Machined Pin Header Connector,Gold or Tin over nickel,Black
