3211-XXSXXBLX1

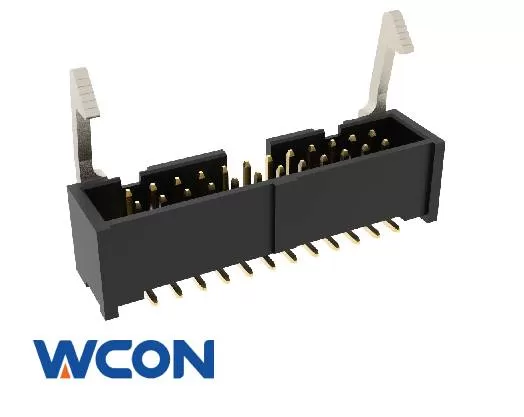

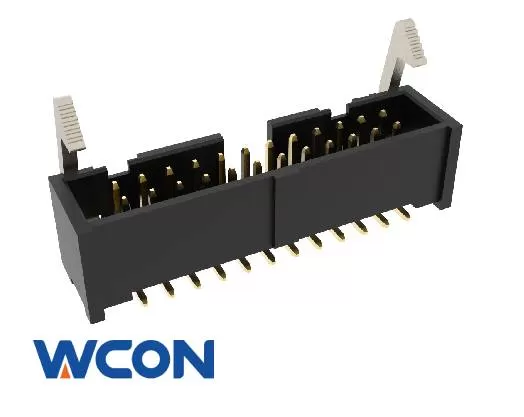

2.54mm Pitch Ejector Header Connector,Vertical,Through Hole,Long Metal Latch,Gold or Tin over Ni
Inquiry Now Register
/assets/upload/2025-07-04/3211-XXMXXBLX1-1.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 250 V/AC Operation Temperature -40°C - +105°C
Rated Current 3 AMP Contact Material Brass
Contact Resistance 20 mΩ Max Insulator Material PA9T or PBT
Insulation Resistance 1000 MΩ Min Contact Plating Au&Sn
Withstand Voltage 1000 V/AC Packaging Tube,Tray

RoHS

Compliant

REACH

Compliant
