3618-PXXX-130MXXR0X

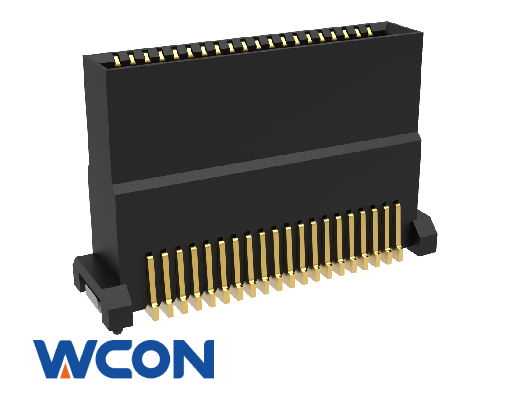

Board To Board Connector,Plug,Vertical,Surface Mount,Dual Row, 13.05mm Height,Gold plating,With Post,With reinforcing metal fitting,Black
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 50 V/AC,V/DC | Operation Temperature | -40°C - +105°C | |
| Rated Current | 0.5 AMP | Contact Material | Copper Alloy | |
| Contact Resistance | 100 mΩ Max | Insulator Material | Thermoplastic Plastics | |
| Insulation Resistance | 500 MΩ Min | Contact Plating | Au | |
| Withstand Voltage | 250 V/AC,V/DC | Packaging | Reel,Tube | |
RoHS
Compliant
REACH
Compliant
-
DescriptionPart Number
-
Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,4.95mm Height,Gold plating
-
Board To Board Connector,Socket,Vertical,Surface Mount,Dual Row,8.45mm Height,Gold plating
